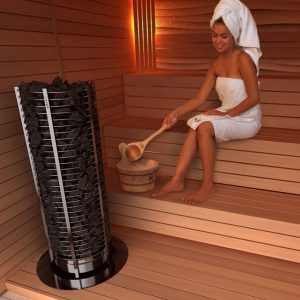

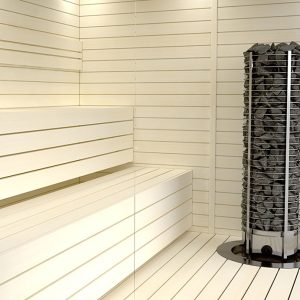

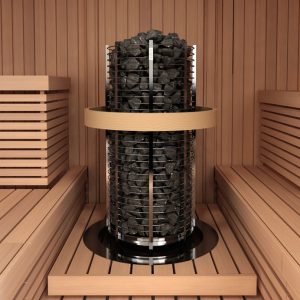

Tower Round

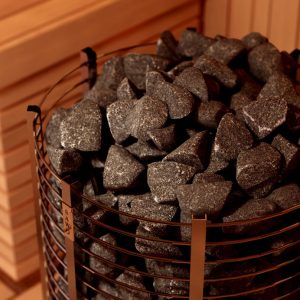

Tower Round is a floor-standing heater which can carry up to 360 kg of stones. Due to its round and thin steel rods, most of the water is exposed to stones – producing a high amount of smooth steam to your sauna room.
Tower Round is suitable for any sizes of sauna rooms. The power rating is from 3 kW up to 24 kW. They can be made with a built-in control, separate control, with integrated Innova control system (Ni) or Saunova control system (Ni2).
Tower heaters are with heating element spacer that makes heating-up faster as it improves the air circulation inside the heater and prolongs the life of the heating elements. Watch video
Installation Diagram Stone Spacer INQUIRETechnical Data
User Manual| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stones (kG) w/o Stone Spacer |
Stones (kG) with Stone Spacer |
|---|---|---|---|---|---|---|
| TH2-30NB | 3 | 2 – 4 | 8+4h | 260 -260 – 1300 | 70 | 60 |
| TH3-35NB | 3,5 | 3 – 6 | 8+4h | 260 -260 – 1300 | 70 | 60 |
| TH3-45NB | 4,5 | 3 – 6 | 8+4h | 260 -260 – 1300 | 70 | 60 |
| TH3-60NB | 6 | 5 – 8 | 8+4h | 260 -260 – 1300 | 70 | 60 |
| TH2-30NS | 3 | 2 – 4 | separate | 260 -260 – 1300 | 70 | 60 |
| TH3-35NS | 3,5 | 3 – 6 | separate | 260 -260 – 1300 | 70 | 60 |
| TH3-45NS | 4,5 | 3 – 6 | separate | 260 -260 – 1300 | 70 | 60 |
| TH3-60NS | 6 | 5 – 8 | separate | 260 -260 – 1300 | 70 | 60 |
| TH4-60NB | 6 | 5 – 9 | 8+4h | 315 – 315 – 1300 | 105 | 90 |
| TH4-60NS | 6 | 5 – 9 | separate | 315 – 315 – 1300 | 105 | 90 |
| TH5-80NS | 8 | 7 – 13 | separate | 315 – 315 – 1300 | 105 | 90 |
| TH5-80NB | 8 | 7 – 13 | 8+4h | 315 – 315 – 1300 | 105 | 90 |
| TH5-90NS | 9 | 8 – 14 | separate | 315 – 315 – 1300 | 105 | 90 |
| TH6-80NB | 8 | 7 – 14 | 8+4h | 365 – 365 – 1300 | 160 | 100 |
| TH6-90NB | 9 | 8 – 15 | 8+4h | 365 – 365 – 1300 | 160 | 100 |
| TH6-80NS | 8 | 7 – 14 | separate | 365 – 365 – 1300 | 160 | 100 |
| TH6-90NS | 9 | 8 – 15 | separate | 365 – 365 – 1300 | 160 | 100 |
| TH6-105NS | 10,5 | 9 – 16 | separate | 365 – 365 – 1300 | 160 | 100 |
| TH6-120NS | 12 | 11 – 18 | separate | 365 – 365 – 1300 | 160 | 100 |
| TH9-105NS | 10,5 | 10 – 16 | separate | 450 – 450 – 1300 | 230 | 165 |
| TH9-120NS | 12 | 11 – 20 | separate | 450 – 450 – 1300 | 230 | 165 |
| TH9-150NS | 15 | 14 – 25 | separate | 450 – 450 – 1300 | 230 | 165 |
| TH9-180NS | 18 | 18 – 28 | separate | 450 – 450 – 1300 | 230 | 165 |
| TH12-150NS | 15 | 15 – 26 | separate | 545 – 545 – 1300 | 360 | 220 |
| TH12-180NS | 18 | 18 – 30 | separate | 545 – 545 – 1300 | 360 | 220 |
| TH12-210NS | 21 | 22 – 35 | separate | 545 – 545 – 1300 | 360 | 220 |
| TH12-240NS | 24 | 24 – 40 | separate | 545 – 545 – 1300 | 360 | 220 |
Ni Version (built-in Innova Controller)
User Manual NiCompatible controls are: Stainless Steel Touch, Innova Touch, Classic and Classic 2.0
| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stones (kG) w/o Stone Spacer |
Stones (kG) with Stone Spacer |
|---|---|---|---|---|---|---|
| TH6-105Ni | 10,5 | 9 – 16 | innova | 365 – 365 – 1300 | 160 | 100 |
| TH6-120Ni | 12 | 11 – 18 | innova | 365 – 365 – 1300 | 160 | 100 |
| TH9-105Ni | 10,5 | 10 – 16 | innova | 450 – 450 – 1300 | 230 | 165 |
| TH9-120Ni | 12 | 11 – 20 | innova | 450 – 450 – 1300 | 230 | 165 |
| TH9-150Ni | 15 | 14 – 25 | innova | 450 – 450 – 1300 | 230 | 165 |
| TH12-150Ni | 15 | 15 – 26 | innova | 545 – 545 – 1300 | 360 | 220 |
| TH12-180Ni | 18 | 18 – 30 | innova | 545 – 545 – 1300 | 360 | 220 |
| TH12-210Ni | 21 | 22 – 35 | innova | 545 – 545 – 1300 | 360 | 220 |
| TH12-240Ni | 24 | 24 – 40 | innova | 545 – 545 – 1300 | 360 | 220 |
Ni2 heaters (built-in Saunova 2.0 Controller)
User Manual NiCompatible control: Saunova 2.0
