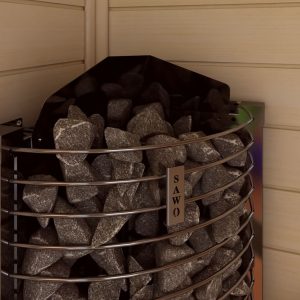

Tower Corner

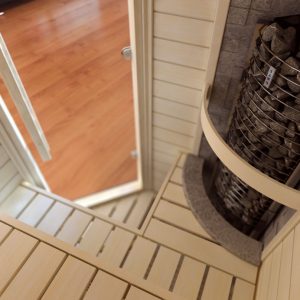

Tower Corner will maximize the free space in your sauna room as it is placed in corner. Design of the heater allows more flexibility with sauna room designing especially when available space is limited.
Tower Corner is available with built-in, separate or integrated (Ni models) Innova control unit.
Power rating is from 3 kW up to 12 kW.
Tower heaters are with heating element spacer that makes heating-up faster as it improves the air circulation inside the heater and prolongs the life of the heating elements. Watch video
Technical Data
User Manual| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stones (kG) w/o Stone Spacer |
Stones (kG) with Stone Spacer |
|---|---|---|---|---|---|---|
| TH2-30NB-CNR | 3 | 2 – 4 | 8+4h | 300 – 300 – 1380 | 70 | 45 |
| TH3-35NB-CNR | 3,5 | 3 – 6 | 8+4h | 300 – 300 – 1380 | 70 | 45 |
| TH3-45NB-CNR | 6 | 3 – 6 | 8+4h | 300 – 300 – 1380 | 70 | 45 |
| TH3-60NB-CNR | 6 | 5 – 8 | 8+4h | 300 – 300 – 1380 | 70 | 45 |
| TH2-30NS-CNR | 3 | 2 – 4 | separate | 300 – 300 – 1380 | 70 | 45 |
| TH3-35NS-CNR | 3,5 | 3 – 6 | separate | 300 – 300 – 1380 | 70 | 45 |
| TH3-45NS-CNR | 4,5 | 3 – 6 | separate | 300 – 300 – 1380 | 70 | 45 |
| TH3-60NS-CNR | 6 | 5 – 8 | separate | 300 – 300 – 1380 | 70 | 45 |
| TH4-60NB-CNR | 6 | 5 – 9 | 8+4h | 355 – 355 – 1380 | 105 | 70 |
| TH4-60NS-CNR | 6 | 5 – 9 | separate | 355 – 355 – 1380 | 105 | 70 |
| TH5-80NS-CNR | 8 | 7 – 13 | separate | 355 – 355 – 1380 | 105 | 70 |
| TH5-80NB-CNR | 8 | 7 – 13 | 8+4h | 355 – 355 – 1380 | 105 | 70 |
| TH5-90NS-CNR | 9 | 8 – 14 | separate | 355 – 355 – 1380 | 105 | 70 |
| TH6-80NB-CNR | 8 | 7 – 14 | 8+4h | 415 – 415 – 1380 | 160 | 80 |
| TH6-90NB-CNR | 9 | 8 – 15 | 8+4h | 415 – 415 – 1380 | 160 | 80 |
| TH6-80NS-CNR | 8 | 7 – 14 | separate | 415 – 415 – 1380 | 160 | 80 |
| TH6-90NS-CNR | 9 | 8 – 15 | separate | 415 – 415 – 1380 | 160 | 80 |
| TH6-105NS-CNR | 10,5 | 9 – 16 | separate | 415 – 415 – 1380 | 160 | 80 |
| TH6-120NS-CNR | 12 | 11 – 18 | separate | 415 – 415 – 1380 | 160 | 80 |
Ni Version (built-in Innova Controller)
User Manual NiCompatible controls are: Stainless Steel Touch, Innova Touch, Classic and Classic 2.0
| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stones (kG) w/o Stone Spacer |
Stones (kG) with Stone Spacer |
|---|---|---|---|---|---|---|
| TH6-105Ni-CNR | 10,5 | 9 – 16 | innova | 415 – 415 – 1380 | 160 | 80 |
| TH6-120Ni-CNR | 12 | 11 – 18 | innova | 415 – 415 – 1380 | 160 | 80 |
Ni2 heaters (built-in Saunova 2.0 Controller)
User Manual Ni2Compatible control: Saunova 2.0
| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stones (kG) w/o Stone Spacer |
Stones (kG) with Stone Spacer |
|---|---|---|---|---|---|---|
| TH2-30Ni2-CNR | 3 | 2 – 4 | Saunova 2.0 | 300 – 300 – 1380 | 70 | 45 |
| TH3-35Ni2-CNR | 3,5 | 3 – 6 | Saunova 2.0 | 300 – 300 – 1380 | 70 | 45 |
| TH3-45Ni2-CNR | 4,5 | 3 – 6 | Saunova 2.0 | 300 – 300 – 1380 | 70 | 45 |
| TH3-60Ni2-CNR | 6 | 5 – 8 | Saunova 2.0 | 300 – 300 – 1380 | 70 | 45 |
| TH4-60Ni2-CNR | 6 | 5 – 9 | Saunova 2.0 | 355 – 355 – 1380 | 105 | 70 |
| TH5-80Ni2-CNR | 8 | 7 – 13 | Saunova 2.0 | 355 – 355 – 1380 | 105 | 70 |
| TH5-90Ni2-CNR | 9 | 8 – 14 | Saunova 2.0 | 355 – 355 – 1380 | 105 | 70 |
| TH6-80Ni2-CNR | 8 | 7 – 14 | Saunova 2.0 | 415 – 415 – 1380 | 160 | 80 |
| TH6-90Ni2-CNR | 9 | 8 – 15 | Saunova 2.0 | 415 – 415 – 1380 | 160 | 80 |
