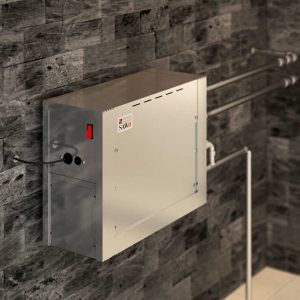

STE Steam Generator
For Residential Use
Our latest steam generator, STE is the easiest way to have a steam. Switch on and adjust the level of steam you like and that’s it! The temperature is adjusted via thermo knob switch for a minimum or maximum output.
The STE steam generators are compact units that are made from stainless steel sheet. They are with 3/4 inch size steam pipe, an dedicated pipe for the over-pressure steam valve. The steam pipe installation can now be either left or right, thanks to reversible wall mounting.
STE steam generators are available with 2 heating elements (3-5kW), 3 heating elements (4.5-7.5kW) and 6 heating elements (9-15kW). Kilowatt ratings of steam generators depend on the size of the steam rooms.
Set includes temperature sensor and steam head. Also available with STE Advance Control, that enables controlling features such as session time, temperature and lights.
Technical Data
2 Heating Elements
| Model Name | Power (kW) |
Steam Room Volume (m3) |
Supply Voltage (V) |
Current (A) | Phase | Wire Size (mm2) |
Size (mm) WIDTH DEPTH HEIGHT |
Weight |
|---|---|---|---|---|---|---|---|---|
| STE-30-1/2 | 3 | 3 max | 220-240 380-415 |
14 8 |
1N 2N |
2,5 2,5 |
525 – 175 – 410 | 9 |
| STE-35-1/2 | 3,5 | 3,5 max | 220-240 380-415 |
16 19 |
1N 2N |
2,5 2,5 |
525 – 175 – 410 | 9 |
| STE-40-1/2 | 4 | 4 max | 220-240 380-415 |
18 10 |
1N 2N |
4 2,5 |
525 – 175 – 410 | 9 |
| STE-45-1/2 | 4,5 | 2 – 5 | 220-240 380-415 |
20 12 |
1N 2N |
4 2,5 |
525 – 175 – 410 | 9 |
| STE-50-1/2 | 5 | 2 – 6 | 220-240 380-415 |
22 8 |
1N 2N |
4 2,5 |
525 – 175 – 410 | 9 |
3 Heating Elements
| Model Name | Power (kW) |
Steam Room Volume (m3) |
Supply Voltage (V) |
Current (A) | Phase | Wire Size (mm2) |
Size (mm) WIDTH DEPTH HEIGHT |
Weight |
|---|---|---|---|---|---|---|---|---|
| STE-45-C1/3 | 4,5 | 2 – 5 | 220-240 380-415 |
7 | 1N 3N |
2,5 | 525 – 200 – 410 | 10 |
| STE-60-C1/3 | 6 | 3 – 10 | 220-240 380-415 |
27 9 |
1N 3N |
6 2,5 |
525 – 200 – 410 | 10 |
| STE-75-C1/3 | 7,5 | 4 – 15 | 220-240 380-415 |
13 11 |
1N 3N |
8 2,5 |
525 – 200 – 410 | 10 |
6 Heating Elements
| Model Name | Power (kW) |
Steam Room Volume (m3) |
Supply Voltage (V) |
Current (A) | Phase | Wire Size (mm2) |
Size (mm) WIDTH DEPTH HEIGHT |
Weight |
|---|---|---|---|---|---|---|---|---|
| STE-90-C1/3 | 9 | 8 – 20 | 220-240 380-415 |
40 13 |
1N 3N |
10 2,5 |
525 – 290 – 410 | 13 |
| STE-120-3 | 12 | 15 – 28 | 380-415 | 18 | 3N | 4 | 525 – 290 – 410 | 13 |
| STE-150-3 | 15 | 22 – 40 | 380-415 | 22 | 3N | 4 | 525 – 290 – 410 | 13 |
