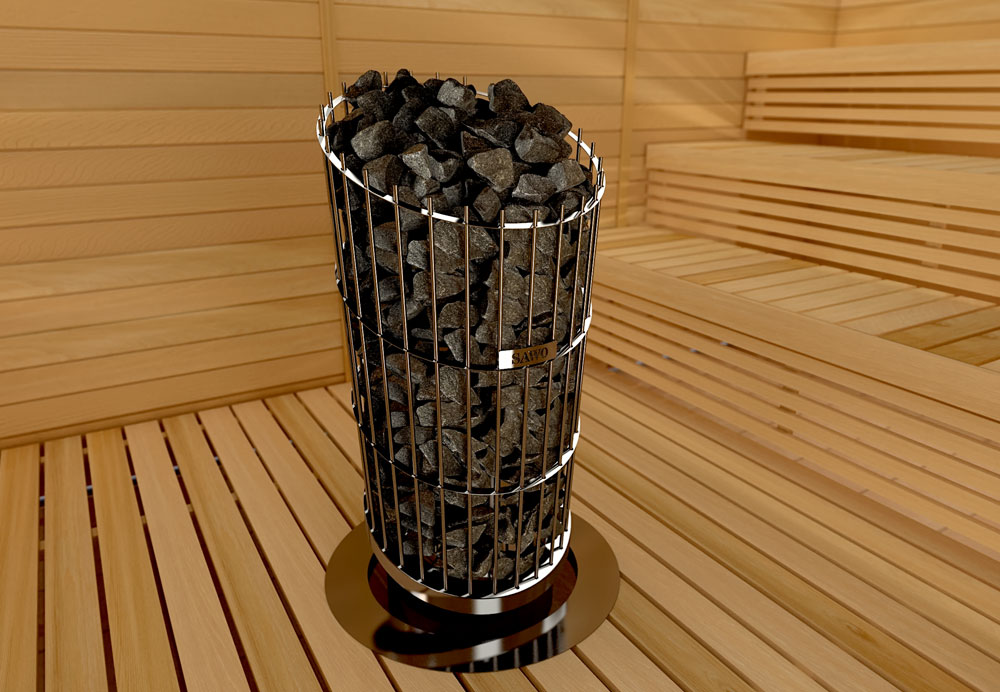

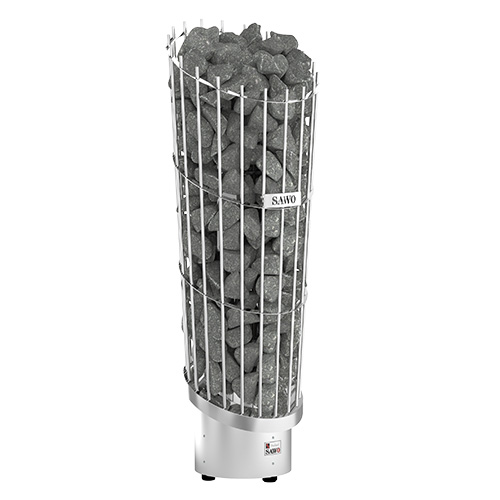

Phoenix
Complete your sauna with a unique oval shape ring heater. The Phoenix has angled rings that hold the pile of stones in an upward broadening form. There are more exposed stones on the hot heater top that generate a bigger amount of steam when water is thrown unto it.
Phoenix heater has faster heating-up time and can hold up to 85 kG of stones. The removable casing is made from tubes that expose the stones better. Phoenix heater is available with a separate control unit or with integrated Saunova control system (Ni2).
Technical Data
User Manual| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stone (kG) |
|---|---|---|---|---|---|
| PNX3-45NS | 4,5 | 3 – 6 | separate | 370 – 340 – 1080 | 85 |
| PNX3-60NS | 6 | 5 – 9 | separate | 370 – 340 – 1080 | 85 |
| PNX3-75NS | 7,5 | 7 – 13 | separate | 370 – 340 – 1080 | 85 |
| PNX3-90NS | 9 | 8 – 14 | separate | 370 – 340 – 1080 | 85 |
| PNX6-90NS | 9 | 8 – 15 | separate | 525 – 475 – 1175 | 130 |
| PNX6-105NS | 10,5 | 9 – 16 | separate | 525 – 475 – 1175 | 130 |
| PNX6-120NS | 12 | 11 – 18 | separate | 525 – 475 – 1175 | 130 |
| PNX6-150NS | 15 | 14 – 25 | separate | 525 – 475 – 1175 | 130 |
| PNX6-180NS | 18 | 18 – 28 | separate | 525 – 475 – 1175 | 130 |
Ni2 Heater
User Manual Ni| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stone (kG) |
|---|---|---|---|---|---|
| PNX3-45Ni2 | 4,5 | 3 – 6 | Saunova 2.0 | 370 – 340 – 1080 | 85 |
| PNX3-60Ni2 | 6 | 5 – 9 | Saunova 2.0 | 370 – 340 – 1080 | 85 |
| PNX3-75Ni2 | 7,5 | 7 – 13 | Saunova 2.0 | 370 – 340 – 1080 | 85 |
| PNX3-90Ni2 | 9 | 8 – 14 | Saunova 2.0 | 370 – 340 – 1080 | 85 |
| PNX6-90Ni2 | 9 | 8 – 15 | Saunova 2.0 | 525 – 475 – 1175 | 130 |
