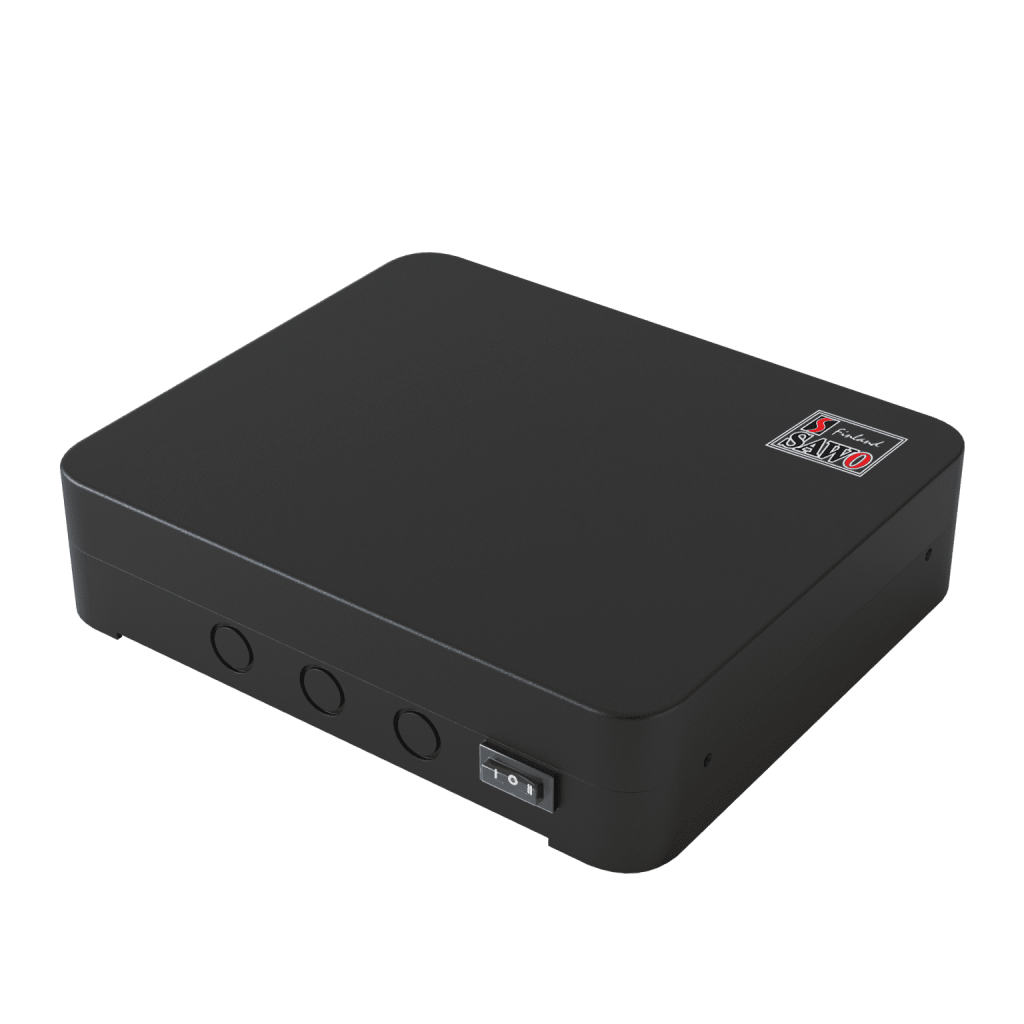

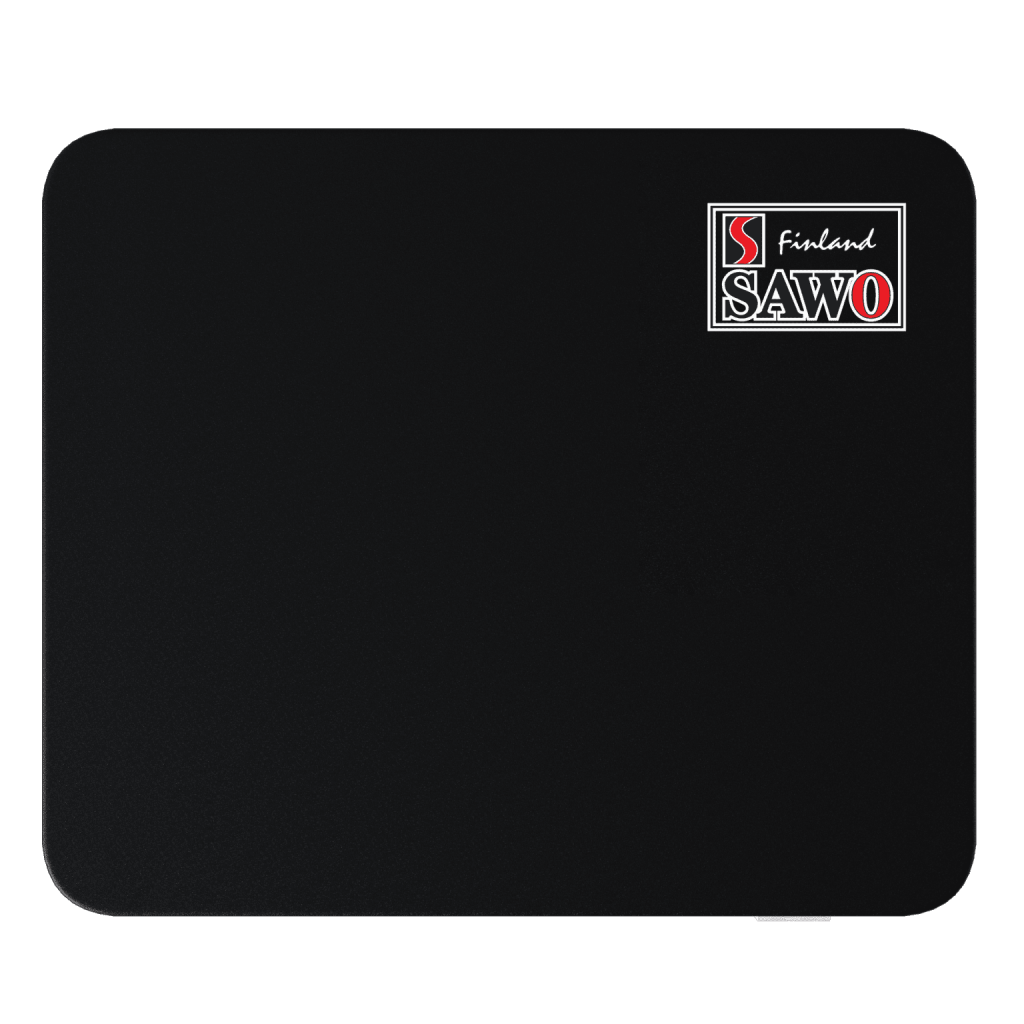

Saunova 2.0 Power Controller
Connect the Saunova 2.0 Power Controller with Saunova 2.0 to use with any NS heater under 9kW.

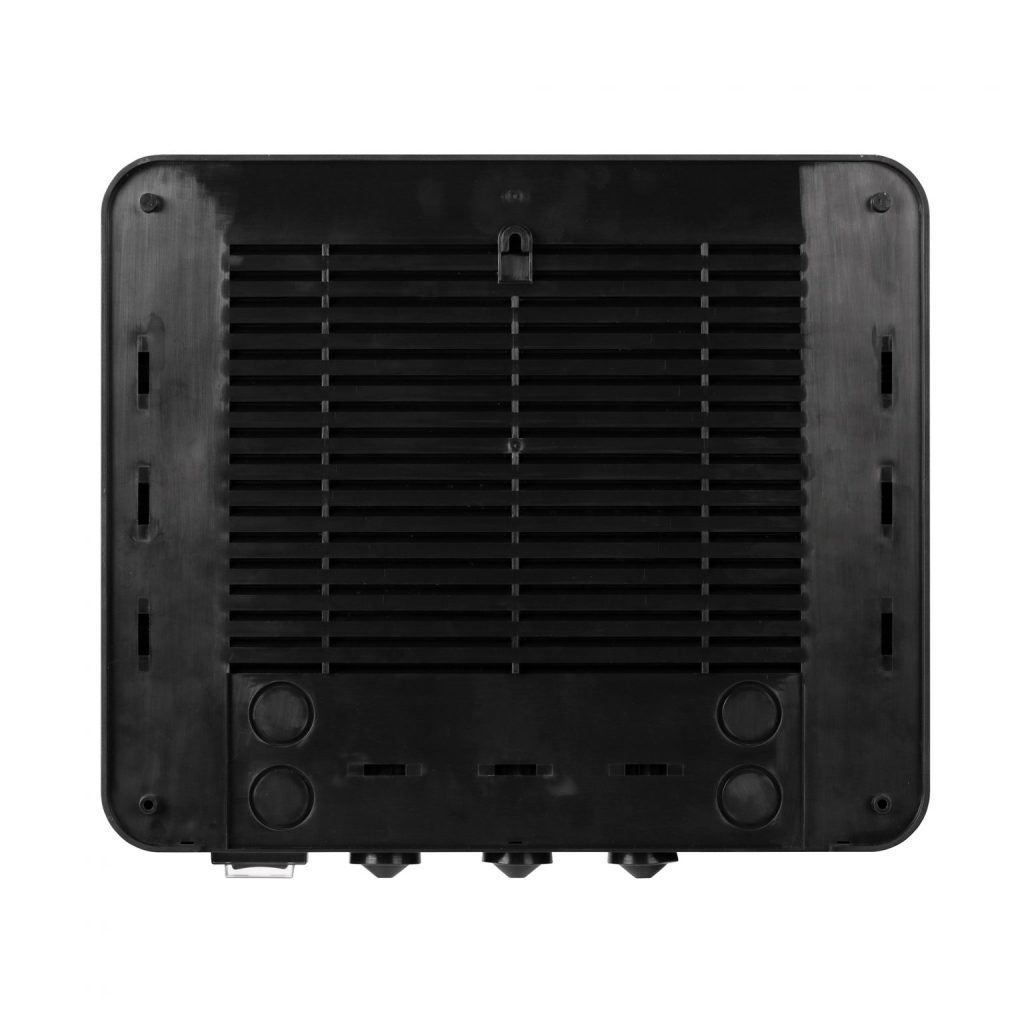

The control casing has more room in it for the electrician to work with, which makes installation easier than ever! New modernized casing has more space for easier and faster installation. Flexible wiring options with strain relief provision on 4 sides, including the back part for wiring to be completely hidden.
- For all NS Heaters 2.3-9kW, for over 9kW add Saunova 2.0 Contactor Unit
- Smart Controlling -feature
- Compatible with Door Sensor
- Prerun timer
- Optional Fan and Combi -feature
Set Includes:
- Power Controller
- RJ12-Cable
- Temperature Sensor with Bass wood cover
Interface Options:
Saunova 2.0 Power Controller
TECHNICAL DETAILS
Suitable Heaters
Temperature Range
Rated Voltage
Max. Session Time
PRODUCT DIMENSIONS
Saunova 2.0 Power Controller
(SAU-PC-V2)
Saunova 2.0 Power Controller with Combi & Fan
(SAU-PC-CF-V2)
2.3 – 9kW*
* with Contactor Unit 9-18kW
10° -110°C
400V 3N~ (3Phase)
230V 1N~ (1Phase)
1h, 2h, 4h, 6h, 8h,
12h, 18h, 24h
L: 32cm x H: 27cm x W: 8cm
2.10KG
L: 32cm x H: 27cm x W: 8cm
2.30KG
