Cubos

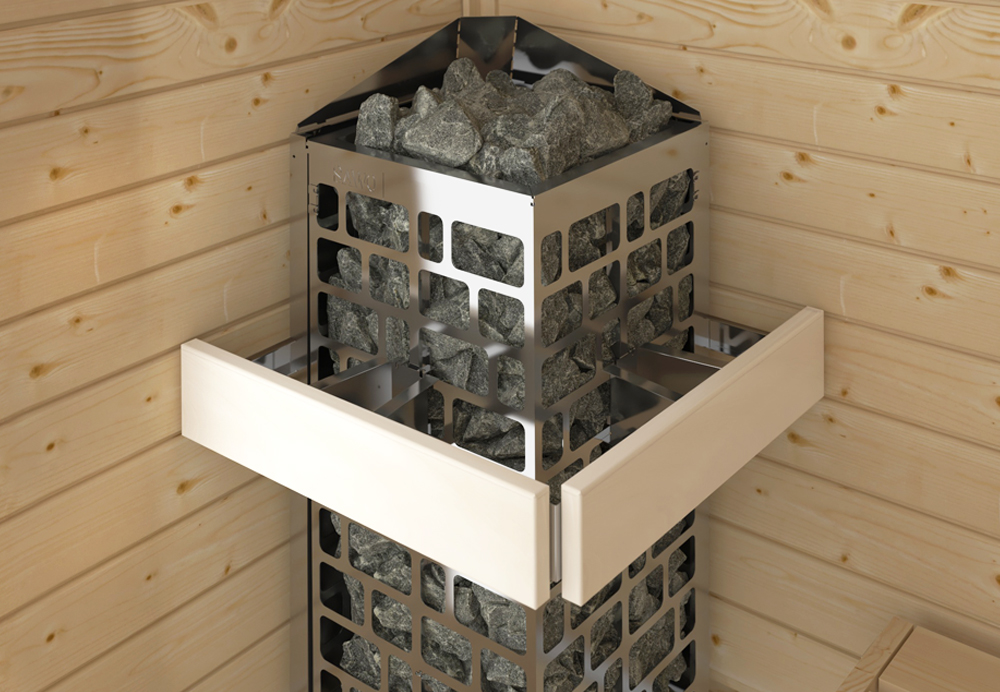

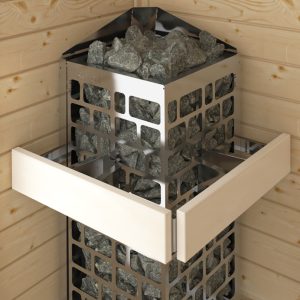

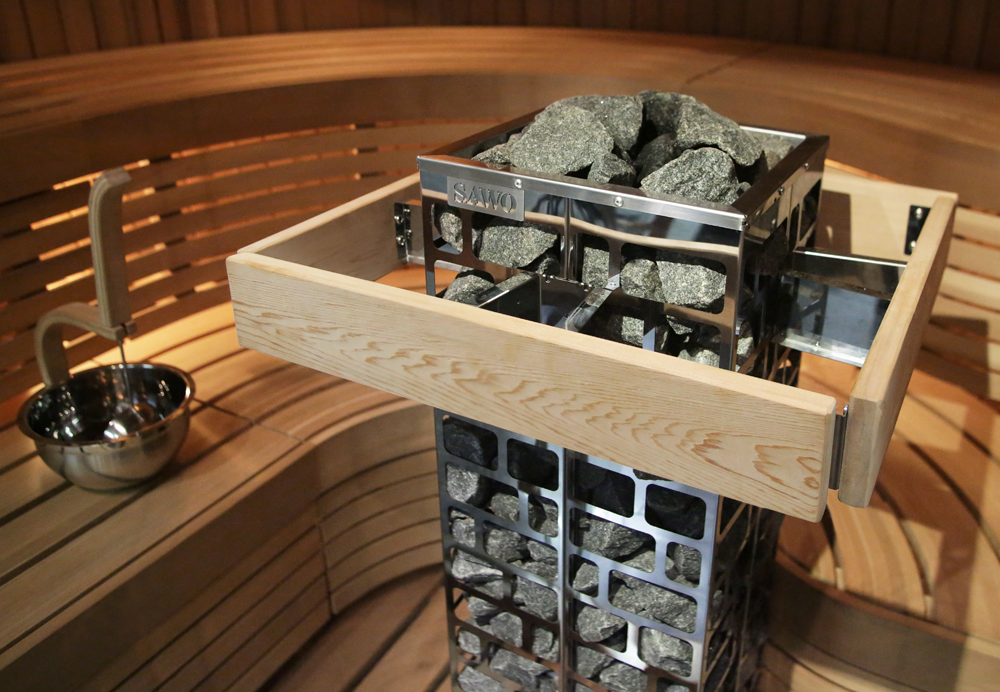

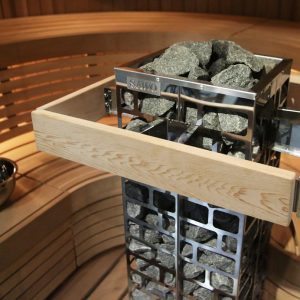

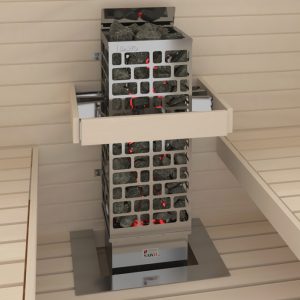

Cubos is a 3 in 1 heater! It can be placed in the middle, corner or wall of the sauna room. Additional protective covers will add support for wall and corner installation. This modern and versatile heater is one of a kind.
Cubos is also available with Saunova 2.0 control (Ni2). Ni2 heaters are effortless to install, easy and energy-efficient to use. Perfect choice for modern saunas.
Technical Data
User Manual| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stone (kG) |
|---|---|---|---|---|---|
| CUB3-45NB | 4,5 | 3 – 6 | 8+4h | 290 – 290 – 930 | 75 |
| CUB3-60NB | 6 | 5 – 9 | 8+4h | 290 – 290 – 930 | 75 |
| CUB3-75NB | 7,5 | 7 – 13 | 8+4h | 290 – 290 – 930 | 75 |
| CUB3-90NB | 9 | 8 – 14 | 8+4h | 290 – 290 – 930 | 75 |
| CUB3-45NS | 4,5 | 3 – 6 | separate | 290 – 290 – 930 | 75 |
| CUB3-60NS | 6 | 5 – 9 | separate | 290 – 290 – 930 | 75 |
| CUB3-75NS | 7,5 | 7 – 13 | separate | 290 – 290 – 930 | 75 |
| CUB3-90NS | 9 | 8 – 14 | separate | 290 – 290 – 930 | 75 |
Ni2 Heater
User Manual Ni| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stone (kG) |
|---|---|---|---|---|---|
| CUB3-45Ni2 | 4,5 | 3 – 6 | Saunova 2.0 | 290 – 290 – 930 | 75 |
| CUB3-60Ni2 | 6 | 5 – 9 | Saunova 2.0 | 290 – 290 – 930 | 75 |
| CUB3-75Ni2 | 7,5 | 7 – 13 | Saunova 2.0 | 290 – 290 – 930 | 75 |
| CUB3-90Ni2 | 9 | 8 – 14 | Saunova 2.0 | 290 – 290 – 930 | 75 |
