Aries Corner

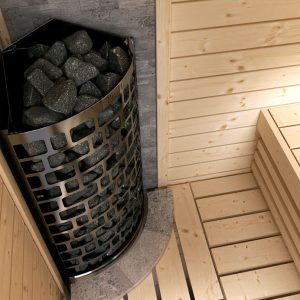

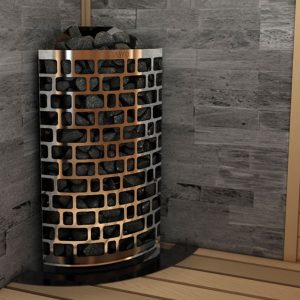

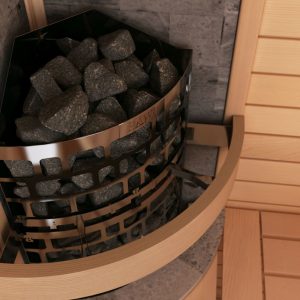

Corner Aries Heater can conserve a limited sauna room space. The bathers are more secured from accidental contact as this heater is placed in the corner.
The thermostat and timer controls can switch sides. This makes it more convenient for the user when using the sauna.
Technical Data
User Manual| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stone (kG) |
|---|---|---|---|---|---|
| ARI3-45NB-CNR | 4,5 | 3 – 6 | 8+4h | 335 – 335 – 1000 | 65 |
| ARI3-60NB-CNR | 6 | 5 – 8 | 8+4h | 335 – 335 – 1000 | 65 |
| ARI3-75NB-CNR | 7,5 | 7 – 13 | 8+4h | 335 – 335 – 1000 | 65 |
| ARI3-90NB-CNR | 9 | 8 – 14 | 8+4h | 335 – 335 – 1000 | 65 |
| ARI3-45NS-CNR | 4,5 | 3 – 6 | separate | 335 – 335 – 1000 | 65 |
| ARI3-60NS-CNR | 6 | 5 – 8 | separate | 335 – 335 – 1000 | 65 |
| ARI3-75NS-CNR | 7,5 | 7 – 13 | separate | 335 – 335 – 1000 | 65 |
| ARI3-90NS-CNR | 9 | 8 – 14 | separate | 335 – 335 – 1000 | 65 |
Ni2 Heater
User Manual Ni| Heater Model | KW | Sauna Room min (m3) max |
Control | Size of heater (mm) WIDTH DEPTH HEIGHT |
Stone (kG) |
|---|---|---|---|---|---|
| ARI3-45Ni2-CNR | 4,5 | 3 – 6 | Saunova 2.0 | 335 – 335 – 1000 | 65 |
| ARI3-60Ni2-CNR | 6 | 5 – 8 | Saunova 2.0 | 335 – 335 – 1000 | 65 |
| ARI3-75Ni2-CNR | 7,5 | 7 – 13 | Saunova 2.0 | 335 – 335 – 1000 | 65 |
| ARI3-90Ni2-CNR | 9 | 8 – 14 | Saunova 2.0 | 335 – 335 – 1000 | 65 |
